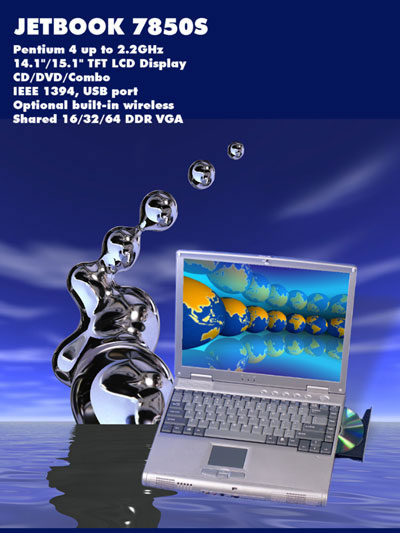

Jetta / jetbook7850sbrochure.jpg

CPU
- Support Intel® Pentium® 4 Processor 1.7/1.8/1.9/2.0GHz processors
- FSB 400MHz /PC 2100

Chipset
- SIS 650 chipset

L2 Cache
- 256KB (Willamette) up to 1.7G
- 512KB (Northwood) 1.8-2.2G

System BIOS
- 512 KB
- ACPI 1.0b; DMI 2.3.1 compliant

Memory
- 0 MB on board; Expandable to 1024MB
- Expandable with combination of optional 128MB/256MB/512MB memory
- Two 200-pin DDR SDRAM Memory Module, PC 2100/1600 specification

ROM Drive
- 12.7mm Height
- 24X CD ROM Drive, 8X DVD ROM Drive, 8X8X24 CD-RW, 8X8X8X24 Combo

HDD
- 2.5" 9.5 mm height: 10/15/20/30/40 GB; Support Ultra DMA 66/100

Ext. FDD
- External FDD w/z USB I/F; 3.5" Format for 720KB/1.2MB/1.44MB

Display
- 15.1” XGA TFT display; Resolution: 1024x768

Video Controller
- Shared 16/32/64 MB DDR VGA Memory
- Support Multi Monitor
- 4X AGP

Keyboard
- 19mm pitch/3.0mm stroke
- Windows Logo Key x 1; Application Key x 1

Button
- 5x Easy Start Buttons (functions defined by user)

Pointing Device
- Glide pad with 2x buttons and 1x scroll button

PCMCIA
- Type II x 1
- CardBus Support

Audio System
- Sound Blaster Pro compatible
- Built-in mono microphone
- Support AC97 2.1
- 2X Speakers (1Watt each)

I/O Port
- Bi-directional Parallel Port (EPP/ECP) x 1
- Standard USB1.1 port x 2
- RJ-11 port x 1
- RJ-45 port x 1
- IR port x1, complies with IrDA 1.1
- DC input x 1
- VGA monitor port x1
- Audio-out x 1 (SPIDF)
- Mic-in x 1
- Hardware Volume Control
- IEEE1394a Port x 1
- S-Video Out Port x 1 (NTSC/PAL)

Communication
- Built-in 56Kbps V.90 MDC modem
- Built-in 10/100 based-T LAN
- Optional Internal Wireless LAN

Power Supply
- 9-cell Li-ion (2000mAH/3.7V)
- User swappable
- Battery Life: 1.5 hrs

AC adapter
- Universal AC adapter 90W ; Input: 100-240V, 50/60Hz AC

Dimensions
- 328mmX274mmX46~37mm

Weight
- 3.4 kg/8.1lb

Software
- Microsoft® Windows® ME/2000/XP

Accessories
- Power Cord, AC Adapter, RJ-11 Phone Cable, Manual, System Driver CD-Title

Architecture
- Designed for Windows ME, Windows 2000 & Windows XP
